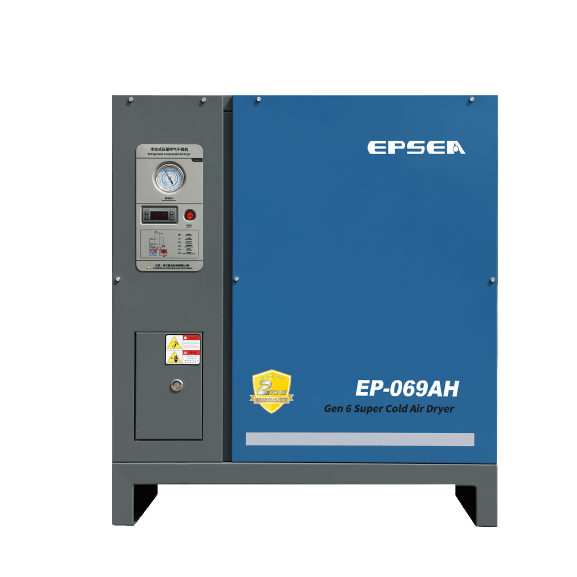

High-performance compressed air dryer with extreme speed pre-cooling, high-efficiency evaporation and dual-stage water separation, delivering low pressure loss and a stable dew point.
Moisture is the failure that shows up somewhere else — a stuck valve, a blistered paint finish, a batch of parts rejected at inspection. The GEN 6 Super Cool sits directly after the compressor and after-cooler and removes that moisture before it ever reaches the ring main.

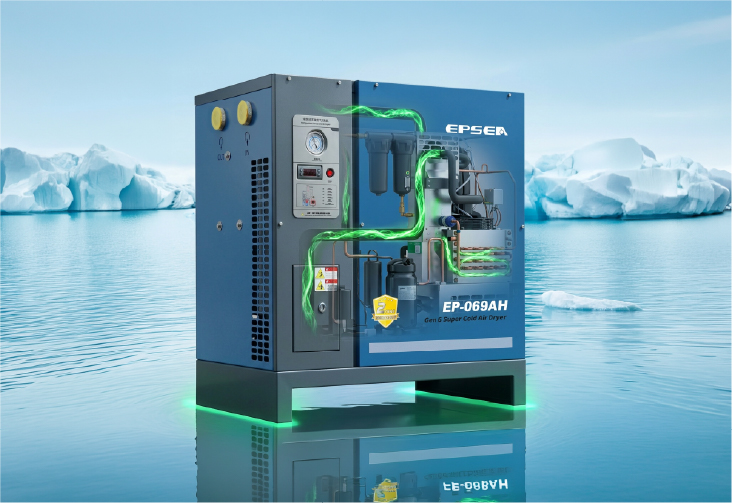

Air enters through an air-to-air pre-cooler, where the outgoing cold stream chills the incoming warm stream. The pre-cooled air then passes over the refrigerated evaporator, condenses, and drops its water into a cyclone separator with a zero-loss electronic drain. Reheating the dry air on the way out prevents condensation on the downstream pipework.
Because the compressor cycles with demand instead of running flat out, a plant on two shifts typically sees the dryer draw standby power for a third of the day.
Every unit is pressure-tested and run for a full thermal cycle before it leaves Foshan. Units are shipped ready to pipe in — no field charging, no commissioning specialist required.
Typical duties for this series across our installed base.
Laser-welded 304 plates replace the copper coil. More surface area in less volume, and nothing to corrode when condensate sits against it.
A thermal mass buffer lets the refrigeration circuit shut down between calls. At 40 % load the unit draws roughly 45 % of rated power.
A thermal mass buffer lets the refrigeration circuit shut down between calls. At 40 % load the unit draws roughly 45 % of rated power.
Laser-welded 304 plates replace the copper coil. More surface area in less volume, and nothing to corrode when condensate sits against it.
A thermal mass buffer lets the refrigeration circuit shut down between calls. At 40 % load the unit draws roughly 45 % of rated power.
A thermal mass buffer lets the refrigeration circuit shut down between calls. At 40 % load the unit draws roughly 45 % of rated power.
| Model | AIR FLOW (M³/MIN) | INLET TEMP (°C) | PRESSURE DEW POINT (°C) | CONNECTION | POWER (KW) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| SC-2A | 0.3 | ≤ 45 | 2 - 7 | G 3/4" | 0.19 | 28 |
| SC-6A | 0.8 | ≤ 45 | 2 - 7 | G 3/4" | 0.25 | 32 |
| SC-10A | 1.2 | ≤ 45 | 2 - 7 | G 1" | 0.37 | 42 |
| SC-15A | 1.7 | ≤ 45 | 2 - 7 | G 1" | 0.55 | 48 |
| SC-20A | 2.5 | ≤ 45 | 2 - 7 | G 1" | 0.55 | 56 |
| SC-2A | 0.3 | ≤ 45 | 2 - 7 | G 3/4" | 0.19 | 28 |
| SC-6A | 0.8 | ≤ 45 | 2 - 7 | G 3/4" | 0.25 | 32 |
| SC-10A | 1.2 | ≤ 45 | 2 - 7 | G 1" | 0.37 | 42 |
| SC-15A | 1.7 | ≤ 45 | 2 - 7 | G 1" | 0.55 | 48 |
| SC-20A | 2.5 | ≤ 45 | 2 - 7 | G 1" | 0.55 | 56 |
Need a Customized Model? Contact Our Experts.
Ageing dryers were holding +12 °C dew point on hot afternoons. Water reached the vacuum grippers, tripped the line twice a week, and a wafer batch was scrapped in July.
SolutionWe logged the plant's flow for two weeks before quoting. Three EP-1500AH units run in parallel with one on rotating standby, so the line stays dry during service. All three report dew point to the plant SCADA over Modbus.
Ageing dryers were holding +12 °C dew point on hot afternoons. Water reached the vacuum grippers, tripped the line twice a week, and a wafer batch was scrapped in July.
SolutionWe logged the plant's flow for two weeks before quoting. Three EP-1500AH units run in parallel with one on rotating standby, so the line stays dry during service. All three report dew point to the plant SCADA over Modbus.
Ageing dryers were holding +12 °C dew point on hot afternoons. Water reached the vacuum grippers, tripped the line twice a week, and a wafer batch was scrapped in July.
SolutionWe logged the plant's flow for two weeks before quoting. Three EP-1500AH units run in parallel with one on rotating standby, so the line stays dry during service. All three report dew point to the plant SCADA over Modbus.
